Overview

From pascom phone system version 18.05 onwards, the integration of Grafana ensures that a comprehensive call analytics tool is now available. Through using this Analytics tool, it is possible to gain an instant live overview of the overall performance and status of your available agents, teams, active calls, call statistics plus information concerning call flows.

The call analytics tool can be found in the pascom web UI under > .

The call analytics tool from Grafana offers does not offer any language selection options and is therefore only available in English.

Grafana User Management via pascom

The authentication for the Grafana Analytics interface is done via the pascom telephone system. This enables a simpler and clearer user administration, which is carried out centrally. The login to the Analytics interface is done via Single-Sign-On via the pascom telephone system. Creating, modifying and also deleting users have a direct influence on grafana users.

Grafana - Admin Role

Every pascom user who has a pascom web UI role of type System Administrator is at the same time an administrator in Grafana and may create, edit, modify and delete own dashboards. Standard dashboards (Real Time, Overview, Teams) can generally not be changed.

Grafana Admin


Loggin to Grafana

The login is done via the pascom telephone system. Log in as usual on the Admin Web UI of the pascom telephone system.

Example Login-Link:

    https://pascom.cloud/yourpbx/

Then click > in the menu.

Grafana - Editor Role

Every pascom user who has a pascom web UI role of type Administrator, PBX Manager or Phonebook Manager is at the same time a Editor in Grafana who can modify dashboards.

Grafana Viewer


Loggin to Grafana

The login is done via the pascom telephone system. Log in as usual on the Admin Web UI of the pascom telephone system.

Example Login-Link:

    https://pascom.cloud/yourpbx/

Grafana - Viewer Role

Every pascom user who has a pascom web UI role of type Grafana Viewer is at the same time a Viewer in Grafana who can only view dashboards.

Grafana Viewer


Loggin to Grafana

The login is done via the pascom telephone system. Log in as usual on the Admin Web UI of the pascom telephone system.

Example Login-Link:

    https://pascom.cloud/yourpbx/

After successful login as Grafana Viewer you will be automatically redirected to the Analytics interface.

Dashboards

Per default, the call analytics tool consist of 7 evaluation views (otherwise known as dashboards or wallboards).

  • Call flow: Provides a detailed insight into the exact call progression (Call Chain) of a specific call.
  • Home: Provides an overview of available, recently used, and favorited dashboards.
  • Outbound Calls Overview: Lists all outbound calls in detail, sorted by the trunk used.
  • Overview: Using the Overview dashboard will provide you with an overview of all calls processed within a specified timeframe including a detailed evaluation.
  • Real Time: With the real time dashboard, the current status of your phone system can be viewed: active calls, callers waiting in a queue, teams and associated agents.
  • Team - Real Time: Provides a real-time view of the workload at the team level, ideal for monitoring support departments.
  • Teams: The Teams dashboard delivers an analysis of all Queues / Teams including the average caller wait times as well as average call duration of inbound calls.

Home

The Home dashboard is the start page of the analytics tool. Here you will find an overview of your available dashboards, your recently used dashboards, and your marked favorites.

If you are missing a specific dashboard on the Home dashboard (e.g., the Team dashboard), you can find a complete list of all dashboards in the general Dashboards menu item.

Home Dashboard

Call flow

The Call flow dashboard provides a detailed insight into the exact call progression (Call Chain) of a specific call.

To load the details of a call, a Call Chain ID must be entered in the Chain filter field (e.g., 1776417978517_233252).

Call flow Dashboard

Call Details: The table lists every single step of the call chronologically.

Value Description
Id ID of the call process.
Time Time of the call process.
Parent ID of the parent call process.
In Prefix Prefix code, which is attached to inbound calls.
From Number Caller phone number.
From Name Caller name, as long as it is available (see phonebook).
Out Prefix Prefix code, which is attached to outbound calls.
To Number Call recipient phone number.
To Name Call recipient name, as long as it is available (see phonebook).
Duration Total duration of the call process.
Talk time (incl. Hold) Total talk time of call process (including “Hold”).
Hold time Total time that the call process was on hold.
Result Result of the call process:
+ hangup: call ended by hangup
+ transfer: call was forwarded
+ noanswer: call was not answered.
Result details Details of the results:
+ caller: caller
+ elsewhere: a different extension picked up / answered the call
+ abandon: Call was rejected / dropped
+ dst: another extension was dialled
+ voicemail: voicemail answering machine was called up.
+ disabled: Function was disabled.
Via Origin of the call process:
+ queue: Team/ Queue
+ transfer: call was forwarded
Via details Initiator of the call process:
+ caller: caller
+ agent: Team member / Agent
+ dst: another extension
+ action: action conditions
Recording Recording of the call process.
Labels Label(s) attached to the call process.

Real Time

The real time dashboard refreshes itself automatically and displays all phone system calls, regardless of whether these calls are currently active, on hold, connected or parked in a call queue. All queues / teams are also automatically displayed and updated, should further teams be added to the pascom phone system or the team agents be editied.

All calls
Real-time display of all calls, which are currently being handled on your pascom phone system. Both in- and outbound calls are displayed, plus all internal calls. A detailed table view provides direct insight into the current status of each call.

Value Description
Time Start time of the call.
From Name Caller name, as long as it is available (see phonebook).
From Number Caller phone number.
To Name Call recipient name, as long as it is available (see phonebook).
To Number Call recipient phone number.
Call state Current status of the call (e.g., Busy for an active call).
Total Time Total duration of the call so far.
Ringing Time Time taken so far to answer the call (ringing).
Talking Time Total talk time of the call so far.
Labels Labels attached to the call.

Outbound Calls Overview

This dashboard lists how many outbound calls were made via which trunk on your pascom cloud phone system. Since multiple trunks can be configured on the phone system, this is a practical way to see which trunk handles what amount of call traffic.

Outbound Calls Overview

Outbound calls per day and trunk
This table summarizes the outbound calls per day and trunk.

Value Description
Date Date of the evaluation.
Trunk name Name of the used trunk.
Number of calls Total number of calls made via this trunk.
Talking time Total talking time via this trunk.

Calls
This detailed table lists every single outbound call.

Value Description
Time Start time of the call.
From Number Caller phone number (your extension).
From Name Caller name (pascom user).
To Number Dialed external phone number.
To Name Call recipient name, as long as it is available (see phonebook).
To Rule Name Name of the outbound rule that applied to this call.
To Trunk Name Name of the used trunk.
Status Result of the call (e.g., hangup).
Duration Total duration of the call process.
Ringing time Time taken to answer the call (ringing).
Talk time (incl. Hold) Total talk time of the call (including “Hold”).
Hold time Total time that the call was on hold.
Labels Label(s) attached to the call process.
Details Links to the Call flow dashboard and loads the Call Chain ID to display the exact call progression.

Overview

The Overview dashboard displays an overview of all ongoing calls, statistics regarding the type of call, attached labels plus a detailed call evaluation.

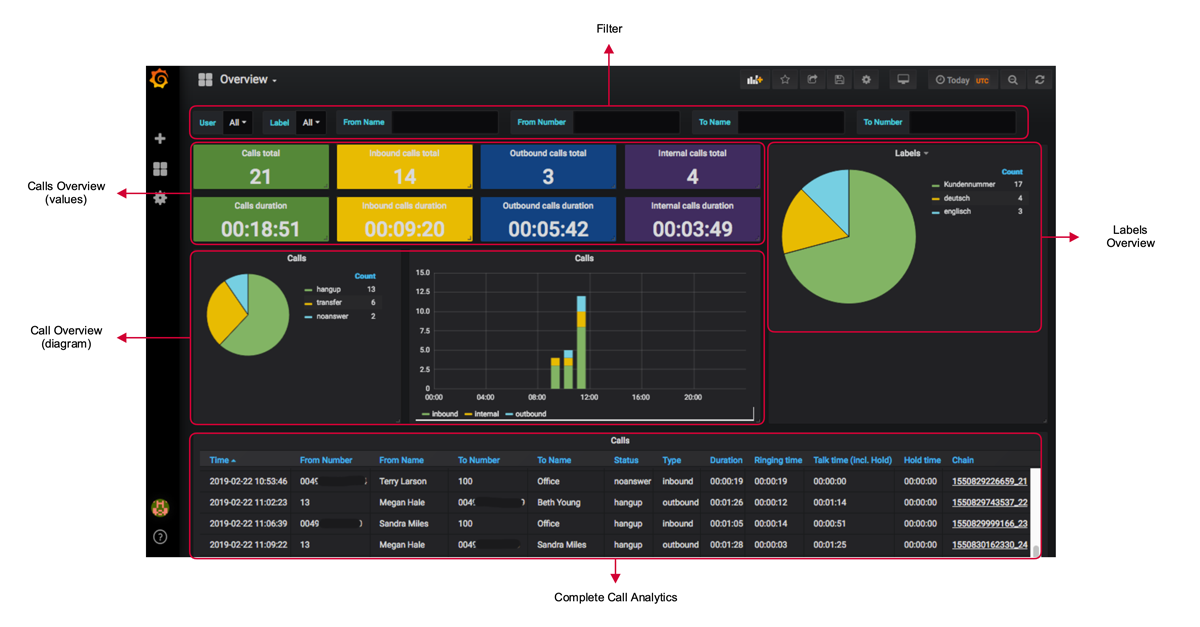

Overview Dashboard

Calls Overview (Values)
In the calls overview section, the call analytics from the selected time frame are displayed.

  • Calls total (green): total number of all calls
  • Calls duration (green): total duration of all calls
  • Inbound calls total (yellow): total number of inbound calls
  • Inbound calls duration (yellow): total duration of incoming calls
  • Outbound calls total (blue): total number of outbound calls
  • Outbound calls duration (blue): total duration of outbound calls
  • Internal calls total (violet): total number of internal calls
  • Internal calls duration (violet): total duration of internal calls

Calls Overview (Graphs)
The pie chart on the left displays the an overview of the call end status.

  • hangup: the call ended with a hangup
  • transfer: the call was forwarded
  • noanswer: the call was not answered

The bar chart in the middle displays which type of calls were conducted at which time during the selected time frame.

  • inbound: Inbound calls
  • outbound: Outbound calls
  • internal: Internal calls

Labels Overview
The pie chart on the right displays a representation of which labels were set during the selected time period.

Analysis Time Frame

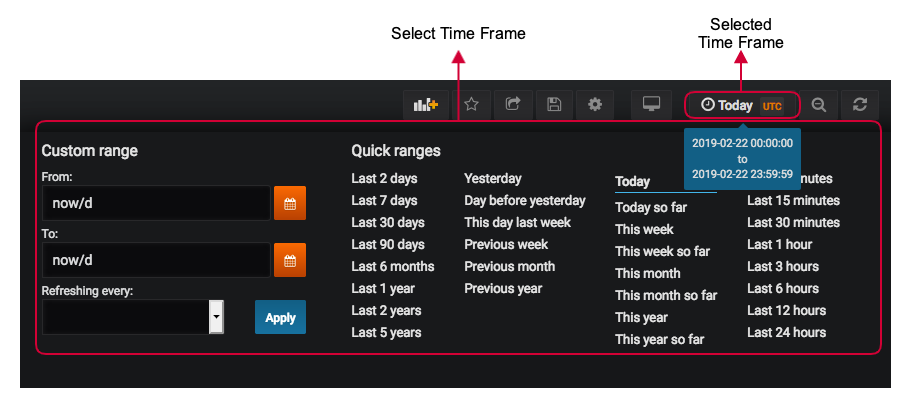

Per default, the Overview dashboard the current day “Today” is analysed. Should you wish to view a specific day or time frame, click on the clock symbol in the top right corner in order to enter the desired time frame.

Analysis Time Frame

Performance Analysis with Filters

The Overview dashboard is the most important tool for performance analysis. Using the filters located at the top of the dashboard, you can perform targeted evaluations and restrict the displayed statistics in detail according to your requirements.

Filters

Filter Description Default
User Here it is possible to restrict the display to one or more specified users. All
Label Here it is possible to restrict the display to one or more labels. All
From Name Here it is possible to filter for caller names. -
From Number Here it is possible to filter for caller phone numbers. -
To Name Here it is possible to filter by call recipient / agent names. -
To Number Here it is possible to filter by the call recipient / agent phone numbers. -

In Depth Analysis (Calls)

The detailed calls table lists all calls handled within a desired time frame and provides extensive metadata for each call.

In Depth Analysis

Value Description
Time Time of call.
From Number Caller phone number.
From Name Caller name, as long as it is available (see phonebook).
From Rule Name Name of the outbound rule used.
To Number Recipient phone number.
To Name Recipient name, as long as it is available (see phonebook).
To Rule Name Name of the inbound rule used.
Agent (answered team calls …) Name of the agent who answered the team call.
Status Call status:
+ hangup: call ended by hangup
+ transfer: call was forwarded
+ noanswer: call was not answered.
Type Type of call:
+ internal: internal call
+ inbound: incoming call
+ outbound: outgoing call
Duration Total duration of the call.
Ringing time Time taken to answer the call (ringing).
Talk time (incl. Hold) Total talk time of the call (including “Hold”).
Hold time Total time, that the call was held.
Labels Labels attached to the call.
Details Links to the Call flow dashboard and loads the Call Chain ID to display the exact call progression.
from_trunk_name Name of the trunk used for the inbound call.
to_trunk_name Name of the trunk used for the outbound call.

Team - Real Time

The Team - Real Time dashboard is essentially structured like the standard Real Time dashboard, but focuses specifically on the team level. This dashboard is particularly useful if you want to keep an eye on the current workload and performance of specific departments (e.g., support) in real-time.

Teams

The Team dashboard provides an overview of all inbound calls to a team / queue, analysis of the average wait times and call duration as well as a number of filter options for specific queues and / or agents.

Within the Team dashboard, only inbound calls are displayed as a team as a whole cannot start an outbound call. In order to analyse outbound calls of individual users / agents, please use the Overview dashboard.

Team-Dashboard

Call Statistics / Analytics
The call analytics section provides a detailed information overview of all inbound team calls during the selected time frame.

  • Calls total: total number of all inbound team calls
  • Total duration: total wait time of all inbound team calls
  • Total Talking time: total call duration of all inbound team calls
  • AHT (Average Handle time): Average call duration of all inbound team calls
  • ASA (Average Speed of Answer): Average waiting time of all inbound team calls

Status Overview
The overview of call statuses is displayed as a pie chart and shows how all inbound calls to the team during the time period ended.

  • noanswer: call was not answered
  • transfer: call was transferred / forwarded
  • hangup: call ended with a hangup

Analytics: Taken Calls
Displays a list of all team agents and then number of inbound calls they have answered during the selected time period.

Analytics: Total Call Duration
This analysis displays a list of all team agents and their total talk time for the inbound calls they have answered. Agents who have not answered a call will not appear.

Attached Labels
This analysis displays a list of all the labels attached to inbound team calls including a counter signifying the exact number of teams the label was attached.

Analysis Time Frame

Per default, the Team dashboard the current day “Today” is analysed. Should you wish to view a specific day or time frame, click on the clock symbol in the top right corner in order to enter the desired time frame.

Analysis Time Frame

Using Filters

Should you want to see a more detailed view of the analysis and statistics contained in the Team dashboard, the following filters are available for this purposes.

Filters

Filter Description Default
Team Here it is possible to restrict the display to one or more specified teams / queues. All
User Here it is possible to restrict the display to one or more specified users. All
Label Here it is possible to restrict the display to one or more labels. All
From Name Here it is possible to filter for caller names. -
From Number Here it is possible to filter for caller phone numbers. -

In Depth Analysis

The detailed analysis (Calls) provides a comprehensive overview of all inbound team calls within a desired time frame.

Value Description
Time Time of call.
Direction Call direction (e.g., inbound).
From Number Caller phone number.
From Name Caller name, as long as it is available (see phonebook).
From rule name Name of the inbound rule used.
Status Call status:
+ hangup: call ended by hangup
+ transfer: call was forwarded
+ noanswer: call was not answered.
Queue Called queue / team.
Agent User / Agent that answered the call.
Duration Total duration of the call.
MOH Music on Hold: The time before the call was successfully routed on to a team or queue.
Agent Ringing Time The call signaling time length (ringing) on agent endpoints.
Talk time (incl. Hold) Total talk time of the call (including “Hold”).
Hold time Total time, that the call was held.
Labels Labels attached to the call.
Details Links to the Call flow dashboard and loads the Call Chain ID to display the exact call progression.

Further Functions

The Grafana call analytics tools offers a number of additional settings and analysis options.

Create / Edit Custom Dashboards

The call analytics tool consists of 7 standard dashboards (Call flow, Home, Outbound Calls Overview, Overview, Real Time, Team - Real Time, Teams), which cannot be modified. However, it is possible to edit individual analyses / statistics and save them to a custom dashboard.

Create New Custom Dashboards

Create a new dashboard from an existing dashboard

Select the dashboard that you would like to copy or use as a template for your new dashboard.

In the actions menu in the top right, click on the settings icon to go to the configurations setting of the dashboard. Modify the configuration settings according to the requirements of your new dashboard and click the button on the left in order to save your new dashboard.

Your newly created dashboard will open automatically and is now available for future use.

Create a new dashboard using the configurations code (JSON), URL or ID

Once you have edited a dashboard or an analysis and have the configurations code (JSON), a link or the dashboard ID to hand, then you can immediately create a fully configured dashboard.

In the lefthand menu list, click the plus symbol and select in order to create a new dashboard using an existing configuration.

Import Dashboard

  • If you have a link or ID, paste it into the first field . or:
  • If you have a configurations code (JSON), paste the code into the second field . Alternatively, you can also upload the configurations code as a JSON file using the button.

Now it is necessary to enter a name for the new dashboard, so that the new dashboard can be appropriately assigned.

Setting Description
Name Appropriate dashboard name.
Folder Dashboard storage folder.
Unique identifier (uid) Appropriate ID for the new dashboard. Default: auto-generated

Confirm the settings and click . Your newly created dashboard will open automatically and is now available.

Create a New Dashboard With a New Analysis

In the lefthand menu list, click the plus symbol and select in order to create a new dashboard from scratch.

Create a New Dashboard

Under , select the diagram format (Panel) which you would like to add to your new dashboard.

  • Graph
  • Singlestat
  • Table
  • Text
  • Heatmap
  • Alert List
  • Dashboard List
  • Row
  • Pie Chart
  • Plugin List

Which diagram format (Panel) is most suitable and how to correctly configure them can be found in the Grafana Documentation.

Once you have added the desired analyses to your new dashboard, click on the save symbol in the top right to save your setup.

Save Dashboard

Now it is neccessary to enter a name for the new dashboard, so that the new dashboard can be appropriately assigned.

Setting Description
Name Appropriate dashboard name.
Folder Dashboard storage folder.

Confirm the settings and click . Your newly created dashboard will open automatically and is now available.

Edit Custom Dashboards

It is possible to edit your custom dashboards to exactly match your requirements, add / remove / copy / edit existing analytics / analyse.

Click on the title of any Analysis / Statistic in an existing dashboard in order to open the advanced action options. Select the action .

Edit Analysis

Now you can modify the analyses according to your requirements:

  • Filter: Edit filters (according the previously selected standard dashboard)
  • General: Update name (Title) and description
  • Metrics: Directly edit SQL queries
  • Options: Edit display options (Coloring, Value, Text (Gauge), and much more.)
  • Value Mappings: Edit standard values and formats
  • Time range: Edit time frames

As soon as you have finished with modifying the analytics settings, you can save your changes by clicking the save symbol in the top right corner.

Save Dashboard

If the dashboard you have edited is an existing standard dashboard (Real Time, Overview or Team), you will receive an error message as standard dashboards cannot be modified and therefore the changes could not be saved:

    Cannot save provisioned dashboard.

Instead, you can copy the displayed dashboard configurations code (JSON) by clicking and finally click and in order to leave the editing screen.

Exporting Dashboards And Analyses

The call analytics tool provides the option of exporting certain analyses and even complete dashboards.

Export Dashboard

Should you wish to export a whole dashboard as JSON, first select the desired dashboard and then click the share symbol in the lefthand menu list.

Dashboard export

Switch to the tab in order to set how the dashboard should be exported.

Setting Description
Export for sharing externally Check this box should you want to be able to use this dashboard independantly of your pascom phone system.

Click in order to export the dashboard as a JSON file. Click in order to display the JSON configurations code.

Exporting Analyses

It is possible to export individual call analytics statistics as a CSV file.

To do so, click on the title of any Analysis / Statistic in an existing dashboard in order to open the advanced action options. Klick on the action and select the option.

Exporting Analyses

Finally, a details window will open in which you can define the CSV settings.

Exporting Analyses

Click and the CSV file will be generated.

Sharing Dashboards

If you want to share a live analysis with someone, you can do so by creating and sharing a link to your dashboard.

The link recipient will however require pascom analytics access credentials, making it advisable to add a new user (e.g. Guest).

Simply select the dashboard you wish to share and from the actions menu click the share symbol in the top right.

Dashboard sharing

Within the “Link” tab, a local link will be automatically generated with which you can share the selected dashboard.

Sharing Snapshots

If you want to share a current analysis with someone without admin access, then you can create a snapshot.

The snapshot displays only the analysis data to the point of the snapshot and will not automatically update itself, meaning with a snapshot a live viewing is not possible.

Select the dashboard that you wish to share and click the share symbol in the top right.

Sharing Snapshots

Go to the tab to configure how long the snapshot should be available for.

Setting Description
Snapshot name enter a snapshot name
Expire How long the snapshot should be available for. Default: Never
Timeout (seconds) Timeout length in seconds for data reading attempts.

Click to generate a local link which can be copied using and then shared.

Assign User Rights

Having successfully added a new user, it can now once again select the user from the list in order to configure additional user settings e.g. to assign user roles.

Per default, each user is setup with “Viewer” rights and can view and share dashboards but not edit them.

In order to change a user’s roles, scroll down under the tab to the settings and by the point “Main Org.Current” select the desired role from the dropdown menu:

  • Viewer: These users can view dashboards but not alter / edit them.
  • Editor: These users can edit and modify customer dashboards. Default dashboards (Real Time, Overview, Teams) cannot be altered as standard.
  • Admin: These users are administrators and are permitted to make changes to the system, add and remove dashboards.

FAQ

What happens if a user or queue / team is deleted from the phone system?

Should a user or queue / team be deleted or agents are removed from an existing queue, the raw data will remain intact for analysis.

That means:

  • In the real time view the no longer available users / queues / teams will no longer be displayed.
  • Deleted users / queues / teams and removed agents are no longer listed in fitlers (can however be manually typed in).
  • Deleted users / queues / teams remain in the existing analysis as long as they existed in the specified time frame.

How Do I display the Real-Time Live Data on a PC / TV?

In order to display a dashboard on a PC or TV in the form of a Contact Centre Wallboard for example, we recommend adding a user for this purpose. This use should only be assigned “Viewer” rights in order to ensure that no alterations can be undertaken.

As this user, log into the PC or TV and open the desired Dashboard which should be displayed as a Wallboard.

How Can I Automatically Switch Between Dashboards i.e. Slideshow?

Should you wish to display more than one specific dashboard in the form of a slideshow that automatically loops between the dashboards, then you will need to create a “Playlist” in order to define which Dashboards should be displayed.

From the left-hand menu, select click the dashboards icon and select the option and then click to create a new playlist. Now enter a name for the playlist and define the interval between dashboard changes in sec (seconds) or m (minutes) to set how often the viewed dashboard should switch.

Under you will find a list of available dashboards. Select the dashboards which should be added to the slideshow via button.

Once added to the slideshow, the dashboard names will appear under the list. Using the arrow keys, it is possible to modify the display order of the dashboards.

When you are happy with your setup, click in order to save your playlist.

Back in the Playlist overview menue, you can start the slideshow by selecting the desired mode from the dropdowndie Dashboards als Slideshow im gewünschten Modus anzeigen lassen:

  • In Normal mode: Normal view of the dashboard including filter ribbon
  • In TV mode: Dashboard content is displayed with only the name of the dashboard as a title
  • In Kiosk mode: Only the dashboard content will be displayed
